Which Parts Fit a 110cc Pit Bike
TL;DR: A 110cc engine label does not establish universal parts fitment. Match replacements by part number, dimensions, or the seller’s written fitment list. The tire and plastic products below have published prices and customer ratings in the supplied product records, but their compatibility with a specific 110cc pit bike is not confirmed. The listed carburetor is described for 200cc-250cc applications, so it should not be treated as a direct 110cc replacement.
Prices and ratings checked in August 2026.
We compare published specifications, seller information, owner feedback, and ownership considerations. Product prices, ratings, and review counts in this article come from the PitBikeHQ product listing data supplied for this article, checked in August 2026. Those records are identified in the source notes below; the figures were not independently verified.
The Compatibility Rule
A 110cc engine label does not identify a universal parts standard. The correct replacement depends on the bike’s existing dimensions, component specifications, and mounting points.
Confirm a part using:
- The original part number
- Exact measurements from the bike
- The motorcycle manufacturer’s parts manual
- The seller’s written fitment list
- A manufacturer application chart
A 110cc pit bike may differ from another 110cc model in wheel dimensions, tire size, brake hardware, chain specification, sprocket mounting, plastics, cable routing, electrical connectors, and engine mounting points. The product brand and seller are separate details: Shinko, Acerbis, Motoz, Dunlop, and Bridgestone are product brands, while eBay is identified as the brand in the supplied carburetor listing.
The model name alone is not enough evidence of compatibility. The buying risk is highest for plastics, controls, and engine-related parts because small dimensional differences can prevent installation.
Common Sizes and How to Confirm Them
The supplied product records do not provide confirmed wheel size, tire size, chain size, sprocket pattern, brake-disc dimensions, cable length, or plastic-mounting layout for a particular 110cc bike. Use the measurements below as checks, not as universal specifications.
| Part | What to match | Buying decision |
|---|---|---|
| Tires | Tire size printed on the sidewall, wheel diameter, rim width, front/rear position, and clearance | Do not choose from engine displacement |
| Inner tubes | Tube size, valve type, and wheel application | Match the tube to the tire and rim |
| Chain | Chain designation, length, and sprocket compatibility | Check the existing chain or parts manual |
| Sprockets | Tooth count, chain designation, bolt pattern, bolt spacing, and center bore | Confirm dimensions rather than model name |
| Brake pads | Pad shape, backing-plate dimensions, and caliper application | Compare the old pad with the fitment list |
| Brake discs | Outside diameter, thickness, center bore, bolt count, and bolt spacing | Measure the disc and hub |
| Plastics | Mounting points, panel dimensions, seat interface, and hardware | Honda model fitment does not automatically transfer to a pit bike |
| Carburetor | Mounting-spigot diameter, air-filter connection, cable arrangement, jetting, and fuel-line position | Match the engine and intake dimensions |
| Controls and cables | Lever perch, cable length, cable ends, and routing | Confirm physical dimensions before ordering |
These checks should be compared against your part, manual, or the seller’s fitment list. The pit bike chain size guide and pit bike tire sizes guide cover two of the measurements buyers commonly need.
Parts Worth Considering
Tires
The following prices, ratings, and review counts are reported in the PitBikeHQ supplied product listing data, source record T-01. They are seller-listing figures and were not independently verified.
- Shinko 244 Series Front/Rear Tire: $51, rating 4.7 from 747 reviews. The supplied record does not provide a confirmed size or fitment for a 110cc pit bike.
- Motoz Tractionator Desert H/T Tire: $156, rating 4.8 from 187 reviews. The seller does not list a confirmed 110cc pit-bike application.
- Dunlop Geomax MX14 Tire: $62, rating 4.8 from 176 reviews. The available record does not confirm the required wheel or tire size.
- Bridgestone Motocross M203 Tire: $48, rating 4.6 from 166 reviews. The necessary dimensions for a specific 110cc pit bike are not listed.
The ratings indicate reported buyer feedback for these products, but they do not establish fitment. A product with a higher rating can still be the wrong size or intended for a different wheel application.
Plastics
The following product information comes from the PitBikeHQ supplied product listing data, source record P-01. Prices, ratings, and review counts are reported listing information and were not independently verified.
- Acerbis Plastic Kit for Honda CRF150R and Honda CRF150R Expert: $115, rating 4.5 from 445 reviews.
- Acerbis Full Plastic Kit for Honda CRF110F: $114, rating 4.5 from 410 reviews.
- Acerbis Full Plastic Kit for Honda CRF110F (2019-2026): $114, rating 4.5 from 410 reviews.
The listings identify Honda-specific applications, but compatibility with an unspecified 110cc pit bike is unverified. Compare mounting-hole locations, panel dimensions, seat junctions, tank clearance, and included hardware before treating any of these kits as candidates.
The two CRF110F entries report the same price, rating, and review count in source record P-01. The available information does not establish whether they are duplicate listings or different kits, so confirm the exact application with the seller.
Carburetors
The following details come from the PitBikeHQ supplied product listing data, source record C-01. The price, rating, review count, product description, and listed brand are seller-reported and were not independently verified.
- 200cc-250cc Dirt Pit Bike ATV NIBBI Racing Carburetor PE 28mm with Air Filter, 1 Year Manufacturer Warranty, Alloy, Mechanical Choke, 4-Stroke: $77, rating 4.7 from 194 reviews.
- Listed brand: eBay.
The seller describes this carburetor for 200cc-250cc applications and reports a PE 28mm specification. That application does not establish direct compatibility with a 110cc engine. Confirm the intake-spigot dimensions, air-filter connection, throttle-cable arrangement, fuel-line location, choke operation, and jetting requirements before buying.
The listed application creates a clear displacement mismatch for this guide. Treat the carburetor as a possible mismatch unless the seller confirms fitment for the exact engine and intake.
How to Measure or Confirm Before Buying
Record the bike’s exact make and model.
Engine displacement is only one identification point. Photograph the frame, engine, wheels, brakes, plastics, and electrical connectors.Read the original part.
Look for a stamped part number, tire marking, chain marking, brake-pad code, or manufacturer label.Measure the installed component.

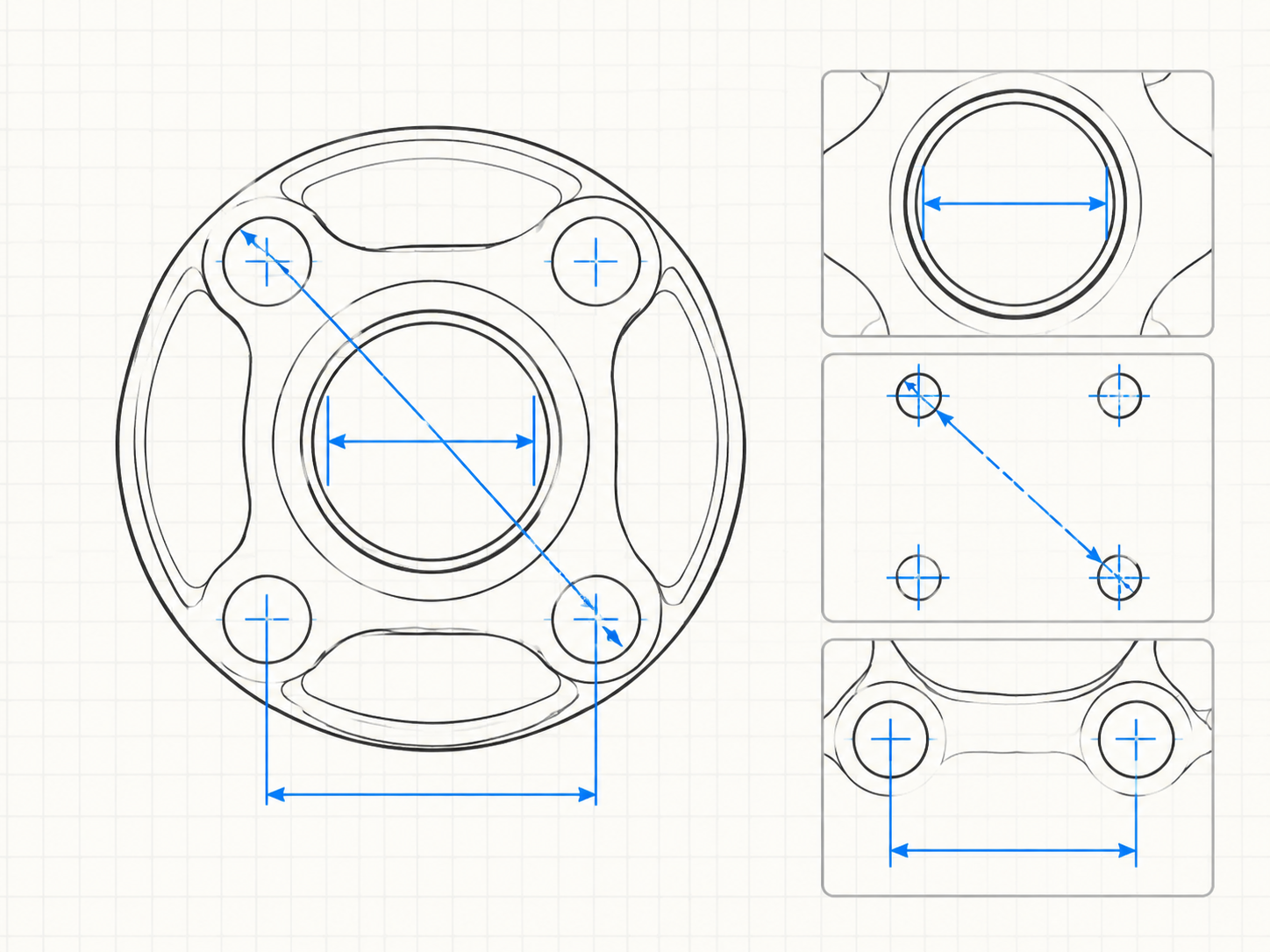

For tires, record the complete sidewall marking. For sprockets and brake discs, measure the mounting pattern and center opening. For plastics, measure the panel and mounting-hole locations.Check interfaces, not just appearance.
A replacement must connect to surrounding parts. Check axle fit, hub spacing, brake alignment, chain line, cable ends, intake diameter, and fastener locations.Compare the measurements with the seller’s fitment list.
Ask the seller to confirm the exact year, model, engine, wheel configuration, and part number. Keep the response with your order records.Confirm what the package includes.
A plastic kit may or may not include brackets, fasteners, decals, or every panel shown in a product image. A carburetor listing may include an air filter but still require different cables, jets, or intake hardware.Inspect the replacement before installation.
Check dimensions and mounting points before removing the original component. Do not force a part into place or modify a mounting point until fitment has been confirmed.
For follow-up work, see the guide to pit bike carburetor adjustment, the pit bike brake adjustment guide, and how to adjust a pit bike chain.
FAQ
Does every 110cc pit bike use the same parts?
No. The available information does not support a universal 110cc parts standard. Confirm each replacement by part number, dimensions, or the seller’s written fitment list.
Will a Honda CRF110F plastic kit fit any 110cc pit bike?
Not automatically. The Acerbis records identify Honda CRF110F applications, but fitment to another 110cc pit bike is unverified. Compare mounting points and panel dimensions with your bike.
Can I install the listed PE 28mm carburetor on a 110cc pit bike?
The seller describes that carburetor for 200cc-250cc applications. Confirm the intake, air-filter, cable, choke, fuel-line, and jetting requirements for your engine before purchasing.
Are the listed tires confirmed to fit a 110cc pit bike?
No. The product records provide prices, ratings, and review counts, but they do not provide enough confirmed tire and wheel information for a specific 110cc pit bike.
What information should I send a parts seller?
Provide the bike’s make and model, engine details, tire markings, photographs of the original part, measurements, and any stamped part number. Ask for written confirmation of fitment before ordering.
Source Notes
- T-01: PitBikeHQ product listing data supplied for this article, containing the Shinko, Motoz, Dunlop, and Bridgestone tire prices, ratings, and review counts.
- P-01: PitBikeHQ product listing data supplied for this article, containing the Acerbis plastic-kit applications, prices, ratings, and review counts.
- C-01: PitBikeHQ product listing data supplied for this article, containing the NIBBI carburetor description, $77 price, 4.7 rating, 194 reviews, 200cc-250cc application, PE 28mm specification, and eBay brand identification.
External verification sources
These links are used to verify the method, named product, or jurisdiction example described above. They do not replace the exact bike manual or the rules where the rider lives.
- Honda powersports owner manuals - model manual and maintenance reference.
- JT Drive Chain range - chain dimensions and fitment reference.
- Michelin tire markings guide - tire size and construction markings.
