Pit Bike Sizes: Seat Height, Wheel Size, and Rider Fit
The short answer: Do not choose a pit bike from engine displacement alone. In five current seller pages checked on September 3, 2026, the 125cc examples used both 14/12-inch and 17/14-inch wheel setups; among the 125cc listings that published seat height, the figures ranged from 31.5 to 33 inches and one page contradicted itself. Compare the exact bike's seat height, wheels, vehicle weight, rider limit, transmission, and control reach before deciding whether it fits.
What “Pit Bike Size” Needs to Include
A 110cc or 125cc label describes engine displacement. It does not identify the bike's seat height, wheel setup, weight, rider limit, transmission, or control position.
Those fields answer different buying questions. Seat height gives you one vertical measurement, wheel sizes identify the listed configuration, weight affects how much motorcycle the rider must manage, and the transmission determines which hand and foot controls the rider must operate.
This guide compares seller-published information for five specific models. The available records do not establish a universal age or height band, so this guide does not create one.
Five Current Size Records
Size and Controls
| Model | Seller category wording | Engine | Transmission | Seat height | Wheels |
|---|---|---|---|---|---|
| Apollo DB32 | Dirt bike / pit bike | 110cc four-stroke C-17 | 4-speed semi-automatic C-18 | 30 in C-01 | 14 in front / 12 in rear C-02 |
| Coolster QG214 / MadMax Plus | Pit bike / dirt bike | 125cc four-stroke C-19 | 4-speed manual C-20 | Conflicting: 31.5 in and 32.28 in C-03 | 14 in front / 12 in rear C-04 |
| Apollo DB-X16 | Pit / dirt motorcycle | 125cc four-stroke C-21 | 1-speed fully automatic C-09 | 33 in C-06 | 14 in front / 12 in rear C-07 |
| Apollo DB-X18 | Pit bike / dirt bike | 125cc four-stroke C-22 | 4-speed manual clutch C-13 | 32 in C-10 | 17 in front / 14 in rear C-11 |
| SYX Moto K1 | Dirt bike / off-road pit bike | 125cc four-stroke C-23 | 4-speed manual clutch C-24 | Not listed on the checked page C-16 | 17 in front / 14 in rear C-14 |
Weight and Rider Load
| Model | Vehicle weight | Rider load |
|---|---|---|
| Apollo DB32 | Not listed | Not listed |
| Coolster QG214 / MadMax Plus | Not confirmed | 250 lb maximum load C-05 |
| Apollo DB-X16 | Seller lists 82 kg gross / 67 kg net C-08 | Not listed |
| Apollo DB-X18 | Seller lists 82 kg gross / 67 kg net C-12 | Not listed |
| SYX Moto K1 | Not listed | Seller FAQ lists a 200 lb maximum load C-15 |
These are seller-listed records, not PitBikeHQ measurements. The category column preserves the sellers' mixed wording instead of assuming that every compact off-road motorcycle is classified the same way.
The C-## markers open the matching record in the published evidence panel. Each record includes the claim, source URL, source type, and retrieval date.
What the 125cc Examples Show
The four 125cc listings do not describe one physical size. The Coolster and Apollo DB-X16 use listed 14/12-inch wheel setups, while the Apollo DB-X18 and SYX K1 use 17/14-inch setups.
Their controls differ too. The DB-X16 is listed with a fully automatic transmission, while the other three 125cc examples use manual transmissions with a clutch.
Engine displacement therefore cannot answer whether a rider can reach the ground, manage the bike's weight, or operate every control. It is one field in the comparison, not a sizing chart.

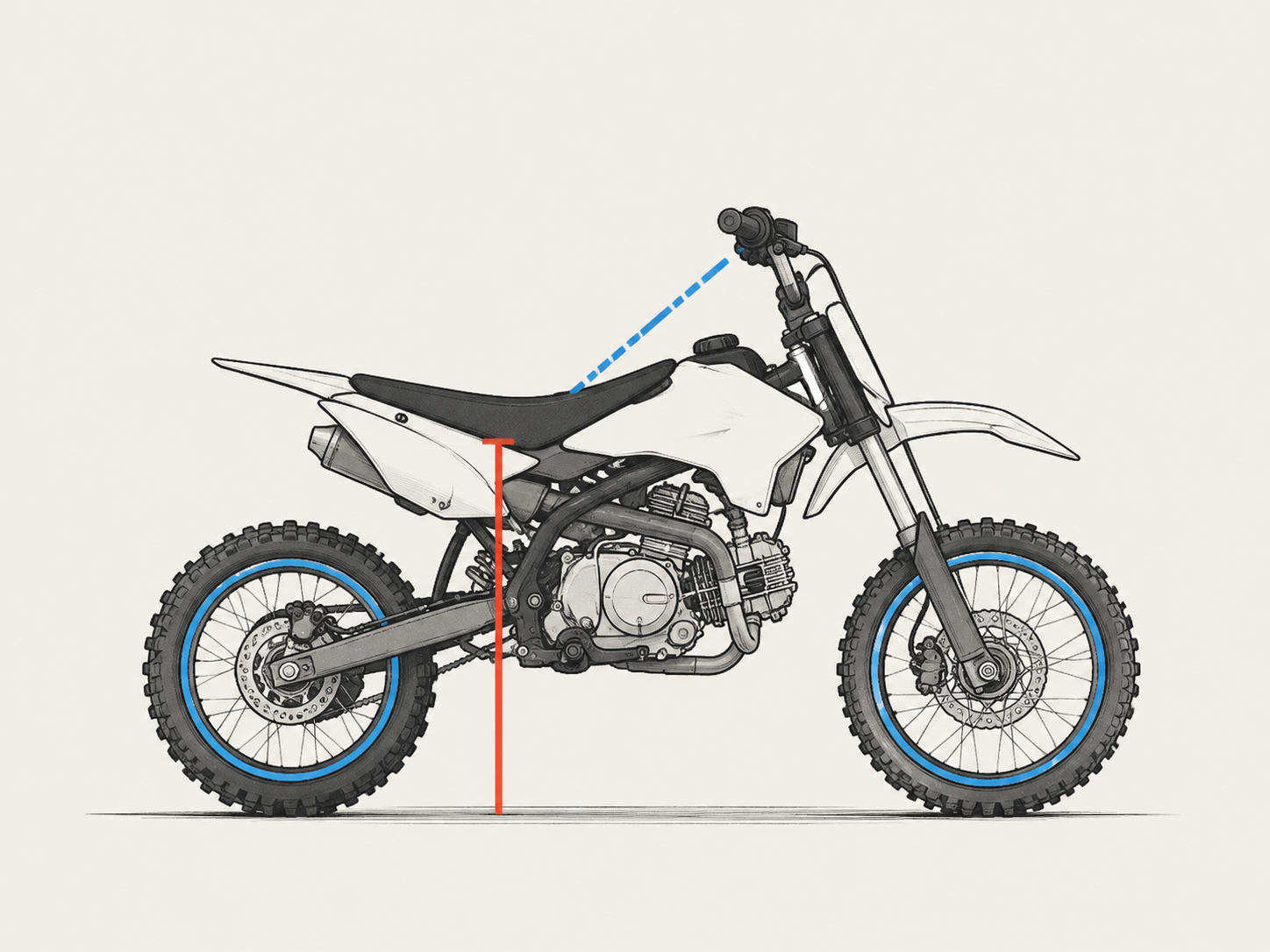

Seat Height Is a Starting Measurement
Seat height lets you compare one point on two listings. It does not tell you the seat width, suspension position under the rider, handlebar reach, foot-control position, or whether the seller measured each model the same way.
The current Coolster page shows why the measurement needs a source. Its key-features section lists a 31.5-inch seat, while its detailed specifications list 32.28 inches. PitBikeHQ cannot determine which figure applies, so the conflict stays visible.
Ask the seller where the measurement starts and ends and whether it applies to the exact production configuration you will receive. When possible, sit on that model and check your reach to the ground and controls rather than relying on the number alone.
Wheel Setup Identifies the Configuration
Front and rear wheel diameters help distinguish configurations that share the same displacement. The checked data includes 14/12-inch and 17/14-inch examples among the 125cc listings.
Do not turn that difference into a universal rider-height rule. The Apollo DB-X16 lists a 33-inch seat with 14/12-inch wheels, while the DB-X18 lists a 32-inch seat with 17/14-inch wheels. The exact frame and seller measurements still matter.
For replacement tires, use the markings on the installed tire and rim rather than this article's model summary. The pit bike tire-size guide explains the separate fitment checks.
Vehicle Weight and Rider Load Are Different
Vehicle weight tells you how much the motorcycle itself weighs under the seller's stated measurement. Rider load is the seller's claimed maximum load on the vehicle. One does not replace the other.
MotoBuys lists both Apollo DB-X models as 82 kg gross / 67 kg net but does not publish a rider-load limit in the checked specifications. The Coolster page lists a 250 lb maximum load without a vehicle weight, while the SYX K1 seller FAQ lists a 200 lb maximum load without a vehicle weight.
That missing information prevents a complete fit comparison. Ask whether a weight is dry, wet, net, curb, or shipping weight, and ask for the exact rider-load definition in writing.
Transmission Changes the Fit Check
A rider must reach and operate the controls fitted to the exact bike. The DB32 is listed as semi-automatic, the DB-X16 as fully automatic, and the DB-X18, Coolster, and SYX K1 as manual-clutch models.
That does not prove one system fits a particular beginner. It means the fit check must include the throttle, both brakes, shifter, kick starter or electric starter, and clutch lever where fitted.
Our beginner off-road bike guide covers the wider control and intended-use decision. The Apollo DB32 guide shows how much rider information can remain missing even when a seller publishes a seat height.
A Repeatable Fit-Check Process
- Confirm the exact model and configuration. Record the model identifier, front and rear wheel sizes, seat height, transmission, vehicle weight, and rider limit from the current listing.
- Measure the rider's inseam. Keep the measurement as a comparison input; do not convert it into a universal model recommendation without manufacturer guidance.
- Check the actual controls. Confirm that the rider can operate the throttle, brakes, shifter, starter, and clutch where fitted without losing a stable position.
- Clarify every weight number. Ask whether it describes the motorcycle, shipping package, or maximum rider load.
- Resolve conflicts before payment. When two sections of a listing disagree, request the current specification in writing.
- Include the riding environment. A size decision does not replace training, supervision, protective equipment, or a permitted riding area. Use the pre-ride safety checklist before riding.
The process narrows a shortlist. It does not certify a bike as suitable for a specific child or adult.
Questions to Send the Seller
- What exact model and production configuration does this listing cover?
- How was the seat height measured?
- What are the front and rear rim and tire sizes?
- What is the vehicle's dry, wet, net, or curb weight?
- Does the published weight include packaging or shipping materials?
- What maximum rider load does the seller or manufacturer publish?
- What rider height or inseam guidance applies to this exact model?
- Can the rider reach every hand and foot control in the intended riding position?
- Is the transmission fully automatic, semi-automatic, or manual clutch?
- Which assembly steps can change the final control or suspension setup?
Parents should also review the missing-fit questions in the kids pit bike guide. Adult buyers can use the adult pit bike guide for the separate load and riding-position considerations.
FAQ
What sizes do pit bikes come in?
There is no single size attached to the category name. The checked listings alone include 30- to 33-inch published seat-height values where available, 14/12-inch and 17/14-inch wheel setups, and different automatic, semi-automatic, and manual controls.
Does 125cc tell me how large a pit bike is?
No. The checked 125cc examples include two wheel configurations, several seat-height claims, different transmissions, and incomplete weight information. Compare the exact model fields instead.
Is a 17/14 pit bike always taller than a 14/12 model?
Not in the checked seller records. The 14/12 Apollo DB-X16 lists a 33-inch seat, while the 17/14 DB-X18 lists a 32-inch seat. Seller measurement methods and the complete vehicle configuration still require confirmation.
What if the seller does not list rider height or inseam?
Ask for written guidance and arrange an in-person fit check where possible. A seat-height number alone does not establish control reach or rider suitability.
What if two specifications on the same page disagree?
Keep the field unresolved until the seller identifies the current value. Do not select the number that best supports a planned purchase.
Sources and Evidence Limits
PitBikeHQ checked these pages on September 3, 2026:
- Superior Powersports Apollo DB32
- Killer Motorsports Coolster QG214 / MadMax Plus
- MotoBuys Apollo DB-X16
- MotoBuys Apollo DB-X18
- SYX Moto K1
The values are seller or manufacturer-seller statements. PitBikeHQ did not measure, weigh, ride, or conduct fit testing on these motorcycles. Source pages can change, so confirm the current listing before buying.
